Volvo Diesel Generators

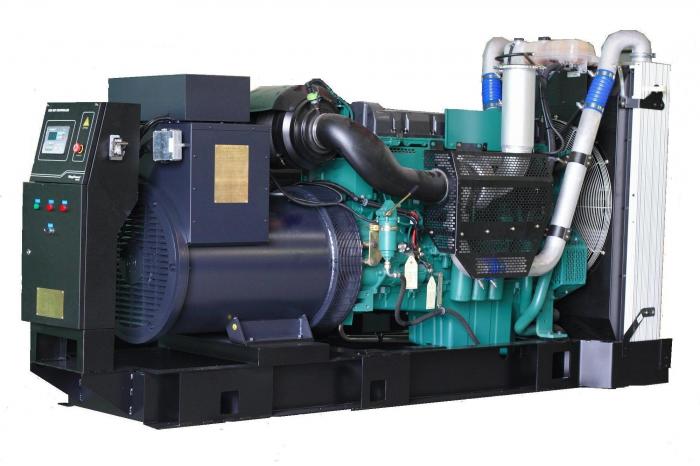

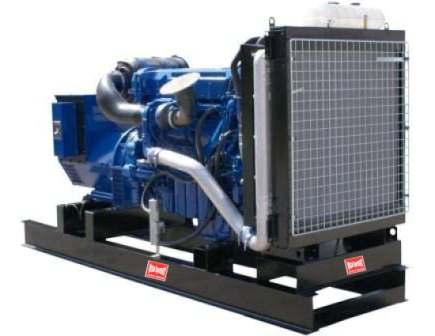

VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY VOLVO DIESEL ENGINES
Visa Energy Model V—M and V—SS – complete Volvo Diesel Generating Set, 94kVA to 700kVA, Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set with Engine Mounted Radiator, 380/400 Volts, 50 Hz, 1500 Rpm Coupled with Either Stamford or Leroy Somer Or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with Operation Diesel Base Tank Supplied With Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) or Four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or Installed Inside A 65 dBA at Seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.
Visa Energy Volvo Series Generating Set Technical Data (50Hz)
| Model | Frequency 50Hz | VOLVO PENTA Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| V85M | 94/75 | 85/68 | TD520GE | 2200×1000×1500 | 3500×1100×1950 |  |
| V100M | 109/87 | 100/80 | TAD520GE | 2200×1000×1500 | 3500×1100×1950 | |
| V130M | 142/114 | 130/104 | TAD532GE | 2300×1000×1500 | 3500×1100×1950 | |
| V150M | 165/132 | 150/120 | TAD720GE | 2500×1000×1600 | 4100×1250×2250 | |
| V190M | 206/165 | 188/150 | TAD721GE | 2600×1000×1800 | 4100×1250×2250 | |
| V200M | 220/176 | 200/160 | TAD722GE | 2600×1000×1800 | 4100×1250×2250 | |
| V250M | 275/220 | 250/200 | TAD734GE | 2800×1000×1800 | 4100×1250×2250 | |
| V280M | 305/244 | 277/222 | TAD940GE | 2800×1100×1800 | 4500×1500×2500 | |
| V325M | 358/286 | 325/260 | TAD941GE | 2800×1100×1800 | 4500×1500×2500 | |
| V375M | 413/330 | 375/300 | TAD1241GE | 2800×1100×1800 | 4500×1500×2500 | |
| V410M | 450/360 | 410/328 | TAD1242GE | 3000×1100×1900 | 5000×1500×2500 | |
| V460M | 506/405 | 462/370 | TAD1640GE | 3300×1100×1900 | 5000×1500×2500 | |
| V500M | 550/440 | 500/400 | TAD1641GE | 3300×1100×1900 | 5000×1500×2500 | |
| V570M | 631/505 | 570/456 | TAD1642GE | 3300×1200×2100 | 5200×1650×2500 | |
| V630M | 700/560 | 630/505 | TWD1643G | 3300×1200×2100 | 5700×1800×2800 | |
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY VOLVO DIESEL ENGINES
Visa Energy Model V—M and V—SS – complete Volvo Diesel Generating Set, 94kVA to 700kVA, Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set with Engine Mounted Radiator, 380/400 Volts, 50 Hz, 1500 Rpm Coupled with Either Stamford or Leroy Somer Or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with Operation Diesel Base Tank Supplied With Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) or Four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or Installed Inside A 65 dBA at Seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.
Visa Energy Volvo Series Generating Set Technical Data(60Hz)
| Model | Frequency 60Hz | VOLVO PENTA Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| V90M | 96/77 | 88/70 | TD520GE | 2200×1000×1500 | 3500×1100×1950 | |
| V110M | 115/92 | 105/84 | TAD520GE | 2200×1000×1500 | 3500×1100×1950 | |
| V135M | 146/117 | 133/106 | TAD532GE | 2300×1000×1500 | 3500×1100×1950 | |
| V160M | 176/141 | 161/129 | TAD720GE | 2500×1000×1600 | 4100×1250×2250 | |
| V210M | 226/181 | 206/165 | TAD721GE | 2600×1000×1800 | 4100×1250×2250 | |
| V230M | 251/201 | 225/180 | TAD722GE | 2600×1000×1800 | 4100×1250×2250 | |
| V260M | 275/220 | 250/200 | TAD734GE | 2800×1000×1800 | 4100×1250×2250 | |
| V290M | 314/251 | 285/228 | TAD940GE | 2800×1100×1800 | 4500×1500×2500 | |
| V350M | 379/303 | 345/276 | TAD941GE | 2800×1100×1800 | 4500×1500×2500 | |
| V400M | 440/352 | 400/320 | TAD1241GE | 2800×1100×1800 | 4500×1500×2500 | |
| V450M | 500/400 | 455/364 | TAD1242GE | 3000×1100×1900 | 5000×1500×2500 | |
| V510M | 564/451 | 506/405 | TAD1640GE | 3300×1100×1900 | 5000×1500×2500 | |
| V590M | 642/513 | 570/456 | TAD1641GE | 3300×1100×1900 | 5000×1500×2500 | |
| V625M | 688/550 | 625/500 | TAD1642GE | 3300×1200×2100 | 5200×1650×2500 | |
| V690M | 750/600 | 688/550 | TWD1643GE | 3300×1200×2100 | 5700×1800×2800 | |
