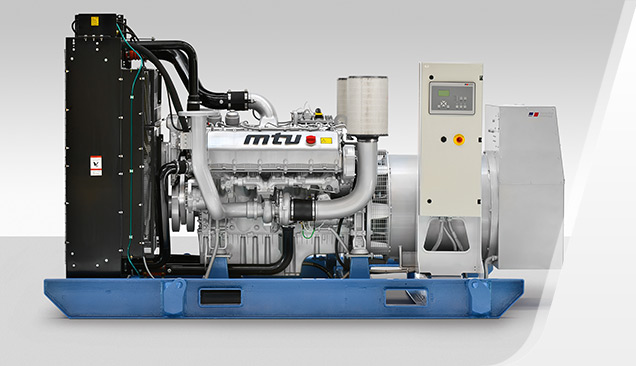

MTU Diesel Generators
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY MTU DIESEL ENGINES
Visa Energy Model G—TLE and G—TLS – Complete MTU Diesel Generating Set, 200kVA to 2500kVA Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set With Engine Mounted Radiator, 380/400 Volts, 50 Hz, 1500 Rpm coupled with either Stamford or Leroy Somer or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with Operation Diesel Base Tank Supplied with Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) or Four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or Installed Inside a 65 dBA at Seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.
Visa Energy (50Hz) MTU Series Generating Set Technical Data
| Model | Frequency 50Hz | MTU Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| M250TLE | 265/212 | 252/201 | 6R1600G10F 6R1600G70F* |
2600×1116×1960 | 3060×1140×2170 |  |
| M300TLE | 298/238 | 284/227 | 6R1600G20F 6R1600G80F* |
3300×1200×2000 | 5000×1500×2300 | |
| M350TLE | 330/264 | 315/252 | 8V1600G10F 8V1600G70F* |
3300×1200×2000 | 5000×1500×2300 | |
| M400TLE | 440/352 | 400/320 | 8V1600G20F 8V1600G80F* |
4300×2000×2400 | 5000×1500×2300 | |
| M450TLE | 450/360 | 425/340 | 10V1600G10F 10V1600G70F* |
3400×1300×2100 | 5200×1650×2550 | |
| M500TLE | 482/385 | 465/372 | 10V1600G20F 10V1600G80F* |
3400×1300×2100 | 5200×1650×2550 | |
| M600TLE | 600/480 | 565/452 | 12V1600G20F 12V1600G80F* |
3700×1600×2200 | 5450×1850×2550 | |
| M880TLE | 880/704 | 800/640 | 12V2000G65 | 4000×1850×2300 | 6000×2050×2550 | |
| M1000TLE* | 1000/800 | N/A | 16V2000G25 | 5000×1950×2300 | 6000×2050×2550 | |
| M1100TLE | 1100/880 | 1000/800 | 16V2000G65 | 5300×2000×2600 | 7000×2150×2650 | |
| M1200TLE | 1200/960 | 1090/872 | 18V2000G65 | 5600×2000×2600 | 7000×2250×2650 | |
| MTU HIGH POWERED DIESEL GENERATORS | ||||||
| M1500TLE | 1375/1100 | 1240/992 | 12V4000G23 | 5600×2000×2600 | 40FT Container | |
| M1655TLE | 1485/1188 | 1340/1072 | 12V4000G23 | 5600×2000×2600 | 40FT Container | |
| M2000TLE | 1800/1440 | 1620/1296 | 12V4000G63 | 6000×2000×2700 | 40FT Container | |
| M2240TLE | 2240/1792 | 2040/1632 | 16V4000G23 | 6000×2000×2700 | 40FT Container | |
| Refer To Factory | |
|||||
| *Standby rated power engines for standby rated gensets | ||||||
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY MTU DIESEL ENGINES
Visa Energy Model G—TLE and G—TLS – Complete MTU Diesel Generating Set, 200kVA to 2500kVA Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set With Engine Mounted Radiator, 380/400 Volts, 50 Hz, 1500 Rpm coupled with either Stamford or Leroy Somer or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with Operation Diesel Base Tank Supplied with Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) or Four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or Installed Inside a 65 dBA at Seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.
Visa Energy (60Hz) MTU Series Generating Set Technical Data
| Model | Frequency 60Hz | MTU Diesel Engine/th> | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| M300TLY | 312/250 | 281/225 | 6R1600G10S 6R1600G70S* |
2600×1116×1960 | 3060×1140×2170 | |
| M375TLY | 375/300 | 350/280 | 6R1600G20S 6R1600G80S* |
3300×1200×2000 | 5000×1500×2300 | |
| M400TLY | 429/350 | 387/310 | 8V1600G10S 8V1600G70S* |
3300×1200×2000 | 5000×1500×2300 | |
| M500TLY | 500/400 | 450/360 | 8V1600G20S 8V1600G80S* |
3300×1200×2000 | 5000×1500×2300 | |
| M560TLY | 563/450 | 512/410 | 10V1600G10S 10V1600G70S* |
3500×1300×2100 | 5200×2000×2550 | |
| M625TLY | 625/500 | 562/450 | 10V1600G20S 10V1600G80S* |
3500×1300×2100 | 5200×2000×2550 | |
| M750TLY | 750/600 | 685/550 | 12V1600G20S 12V1600G80S* |
3700×1600×2200 | 5200×2000×2550 | |
| M900TLY | 875/700 | 830/664 | 12V2000G45 | 3700×1600×2200 | 5200×2000×2550 | |
| M1000TLY | 1000/800 | 937/750 | 12V2000G85 | 4000×1850×2300 | 6000×2050×2650 | |
| M1100TLY | 1125/900 | 1035/830 | 16V2000G45TB | 4000×1850×2300 | 6400×2050×2650 | |
| M1250TLY | 1250/1000 | 1137/910 | 16V2000G85TB | 5000×1950×2300 | 7000×2150×2650 | |
| M1500TLY | 1500/1200 | 1360/1090 | 18V2000G85 | 5300×2000×2400 | 40FT Container | |
| MTU HIGH POWERED DIESEL GENERATORS | ||||||
| M1600TLY | 1563/1250 | 1406/1125 | 12V4000G43 | 5600×2000×2400 | 40FT Container | |
| M1900TLY | 1850/1480 | 1630/1304 | 12V4000G43 | 5600×2000×2400 | 40FT Container | |
| M2200TLY | 2188/1750 | 1937/1550 | 12V4000G83 | 6000×2000×2700 | 40FT Container | |
| M2500TLY | 2500/2000 | 2250/1800 | 16V4000G43 | 6500×2000×2700 | 40FT Container | |
|
||||||
| *Standby rated power engines for standby rated gensets | ||||||
