Perkins Diesel Generators
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY PERKINS DIESEL ENGINES

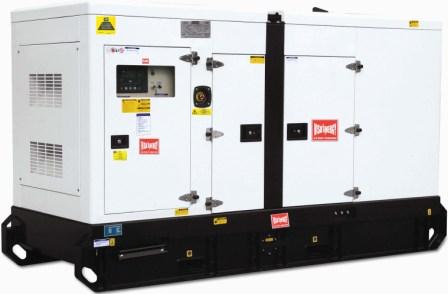

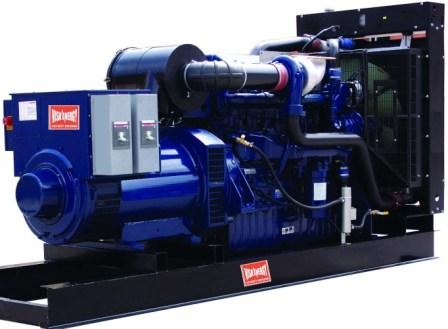

Visa Energy Model P—M and P—SS – Complete Perkins Diesel Generating Set, 10kVA to 2200kVA, Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set With Engine Mounted Radiator, 380/400 Volts, 50 Hz, 1500 Rpm Coupled With Either Stamford or Leroy Somer or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with Operation Diesel Base Tank supplied with Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) Or Four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe And Silencer (Skid Mounted – Open Frame Type) or Installed Inside a 65 dBA At Seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.Visa Energy Perkins Series Generating Set Technical Data (50Hz)
| Model | Frequency 50Hz | PERKINS Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| P9M | 10/8 | 9/7 | 403A-11G | 1420×905×1114 | 1860×910×1600 |  |
| P13M | 15/12 | 13/10 | 403A-15G | 1420×920×1250 | 1860×910×1600 | |
| P20M | 22/18 | 20/16 | 404A-22G1 | 1420×920×1260 | 1860×910×1600 | |
| P30M | 33/27 | 30/24 | 1103A-33G | 1460×920×1375 | 2260×1040×1790 | |
| P45M | 50/40 | 45/36 | 1103A-33TG1 | 1650×905×1400 | 2260×1040×1790 | |
| P60M | 66/53 | 60/48 | 1103A-33TG2 | 1885×905×1375 | 2260×1040×1790 | |
| P80M | 88/71 | 80/64 | 1104C-44TAG1 | 1925×940×1396 | 2560×1040×1805 | |
| P100M | 110/88 | 100/80 | 1104C-44TAG2 | 1925×940×1396 | 2560×1040×1805 | |
| P135M | 150/120 | 135/108 | 1006TAG | 2400×1000×1570 | 3060×1140×2170 | |
| P150M | 165/52 | 150/120 | 1006TAG2 | 2400×1000×1570 | 3060×1140×2170 | |
| P180M | 198/159 | 180/144 | 1106C-E66TAG4 | 2400×1000×1570 | 3060×1140×2170 | |
| P200M | 229/183 | 208/167 | 1306C-E87TAG3 | 2543×1116×1960 | 3060×1140×2170 | |
| P230M | 251/201 | 228/183 | 1306C-E87TAG4 | 2600×1116×1960 | 3060×1140×2170 | |
| P250M | 275/220 | 250/200 | 1306C-E87TAG6 | 2600×1116×1950 | 3060×1140×2170 | |
| P350M | 385/308 | 350/280 | 2306A-E13TAG2 | 3300×1200×2000 | 5000×1500×2300 | |
| P400M | 440/352 | 400/320 | 2306A-E13TAG3 | 3300×1200×2000 | 5000×1500×2300 | |
| P450M | 501/401 | 455/364 | 2506A-E15TAG1 | 3400×1300×2100 | 5200×1650×2550 | |
| P500M | 550/440 | 500/400 | 2506A-E15TAG2 | 3400×1300×2100 | 5200×1650×2550 | |
| P600M | 660/528 | 600/480 | 2806C-E18TAG1A | 3700×1600×2200 | 5250×2000×2850 | |
| P650M | 715/572 | 650/520 | 2806A-E18TAG2 | 3700×1600×2200 | 5250×2000×2850 | |
| P750M | 825/660 | 750/600 | 4006-23TAG2A | 4000×1850×2300 | 6400×2050×2850 | |
| P800M | 880/704 | 800/640 | 4006-23TAG3A | 4000×1850×2300 | 6400×2050×2850 | |
| P1000U | 1124/899 | 1022/818 | 4008-TAG2A | 5000×1950×2300 | 7000×2100×2950 | |
| P1250U | 1378/1102 | 1253/1003 | 4012-46TWG2A | 5300×2000×2700 | 7500×2400×2980 | |
| P1360U | 1500/1200 | 1364/1091 | 4012-46TWG3A | 5300×2000×2700 | 7500×2400×2980 | |
| P1500U | 1656/1323 | 1505/1204 | 4012-46TAG2A | 5300×2000×2700 | Container`30 | |
| P1700WU | 1857/1486 | 1688/1350 | 4016-TWG2 | 6000×2000×2700 | Container`40 | |
| P1700U | 1900/1520 | 1750/1400 | 4012-46TAG3A | 5300×2000×2700 | Container`40 | |
| P1750U | 1927/1542 | 1752/1402 | 4016-TAG | 6000×2000×2700 | Container`40 | |
| P1845U | 2028/1623 | 1844/1475 | 4016-TAG1A | 6000×2000×2700 | Container`40 | |
| P2060U | 2264/1811 | 2058/1647 | 4016 TAG2A | 6000×2000×2700 | Container`40 | |
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY PERKINS DIESEL ENGINES
Visa Energy Model P—M and P—SS – Complete Perkins Diesel Generating Set, 10kVA to 2200kVA, Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set With Engine Mounted Radiator, 380/400 Volts, 50 Hz, 1500 Rpm Coupled With Either Stamford or Leroy Somer or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with Operation Diesel Base Tank supplied with Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) Or Four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe And Silencer (Skid Mounted – Open Frame Type) or Installed Inside a 65 dBA At Seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.
Visa Energy Perkins Series Generating Set Technical Data (60Hz)
| Model | Frequency 60Hz | PERKINS Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| P9M | 10/8 | 9/7 | 403C-11G | 1420×905×1114 | 1860×910×1600 | |
| P13M | 15/12 | 13/10 | 403C-15G | 1420×920×1250 | 1860×910×1600 | |
| P20M | 22/18 | 20/16 | 404C-22G | 1420×920×1260 | 1860×910×1600 | |
| P30M | 33/27 | 30/24 | 1103C-33G3 | 1460×920×1375 | 2260×1040×1790 | |
| P45M | 50/40 | 45/36 | 1103C-33TG3 | 1650×905×1400 | 2260×1040×1790 | |
| P60M | 66/53 | 60/48 | 1104C-44TG3 | 1885×905×1375 | 2260×1040×1790 | |
| P80M | 88/71 | 80/64 | 1104C-44TAG1 | 1925×940×1396 | 2560×1040×1805 | |
| P100M | 110/88 | 100/80 | 1104C-44TAG2 | 1925×940×1396 | 2560×1040×1805 | |
| P135M | 150/120 | 136/109 | 1106C-E66TAG2 | 2400×1000×1570 | 3060×1140×2170 | |
| P150M | 165/52 | 150/120 | 1106C-E66TAG3 | 2400×1000×1570 | 3060×1140×2170 | |
| P180M | 198/159 | 180/144 | 1106C-E66TAG4 | 2400×1000×1570 | 3060×1140×2170 | |
| P200M | 229/183 | 208/167 | 1306C-E87TAG3 | 2543×1116×1960 | 3060×1140×2170 | |
| P230M | 251/201 | 228/183 | 1306C-E87TAG4 | 2600×1116×1960 | 3060×1140×2170 | |
| P250M | 275/220 | 250/200 | 1306C-E87TAG6 | 2600×1116×1950 | 3060×1140×2170 | |
| P350M | 385/308 | 350/280 | 2306C-E14TAG2 | 3300×1200×2000 | 5000×1500×2300 | |
| P400M | 440/352 | 400/320 | 2306C-E14TAG3 | 3300×1200×2000 | 5000×1500×2300 | |
| P450M | 501/401 | 455/364 | 2506C-E15TAG1 | 3400×1300×2100 | 5200×1650×2550 | |
| P500M | 550/440 | 500/400 | 2506C-E15TAG2 | 3400×1300×2100 | 5200×1650×2550 | |
| P600M | 660/528 | 600/480 | 2806C-E18TAG1A | 3700×1600×2200 | 5250×2000×2850 | |
| P650M | 715/572 | 650/520 | 2806A-E18TAG2 | 3700×1600×2200 | 5250×2000×2850 | |
| P730M | 803/642 | 730/584 | 4006-23TAG2A | 4000×1850×2300 | 6400×2050×2850 | |
| P800M | 880/704 | 800/640 | 4006-23TAG3A | 4000×1850×2300 | 6400×2050×2850 | |
| P1000U | 1124/899 | 1022/818 | 4008-TAG2A | 5000×1950×2300 | 7000×2100×2950 | |
| P1250U | 1378/1102 | 1253/1003 | 4012-46TWG2A | 5300×2000×2700 | 7500×2400×2980 | |
| P1360U | 1500/1200 | 1364/1091 | 4012-46TWG3A | 5300×2000×2700 | 7500×2400×2980 | |
| P1500U | 1656/1323 | 1505/1204 | 4012-46TAG2A | 5300×2000×2700 | Container`30 | |
| P1700WU | 1857/1486 | 1688/1350 | 4016-TWG2 | 6000×2000×2700 | Container`40 | |
| P1700U | 1876/1501 | 1705/1364 | 4012-46TAG3A | 5300×2000×2700 | Container`40 | |
| P1750U | 1927/1542 | 1752/1402 | 4016-TAG | 6000×2000×2700 | Container`40 | |
| P1845U | 2028/1623 | 1844/1475 | 4016-TAG1A | 6000×2000×2700 | Container`30 | |
| P2060U | 2264/1811 | 2058/1647 | 4016 TAG2A | 6000×2000×2700 | Container`40 | |
