Mitsubishi Diesel Generator
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY MITSUBISHI DIESEL ENGINES

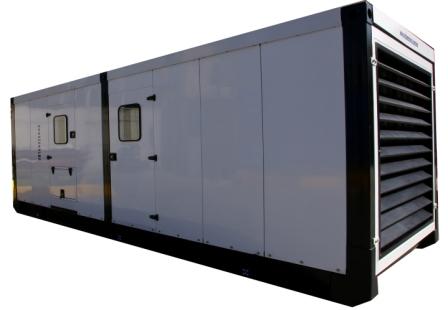

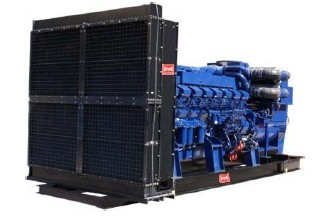

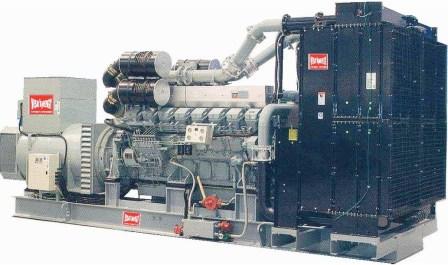

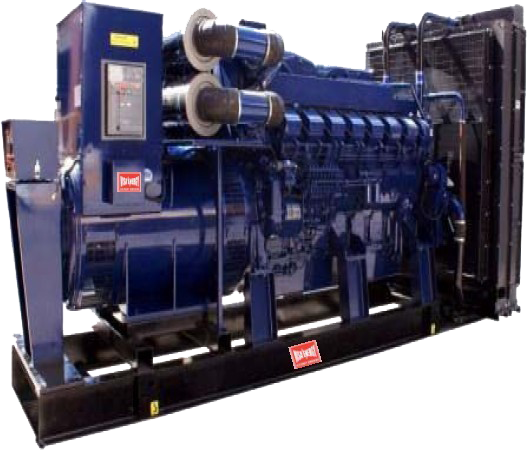

Visa Energy Model G—MNE and G—MNS – complete Mitsubishi Diesel Generating Set, 600kVA to 4000kVA, Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set with Engine Mounted Radiator, 380/400 volts, 50 Hz, 1500 Rpm with coupled with either Stamford or Leroy Somer or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with operation Diesel Base Tank Supplied With Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) or Four (04) Pole Circuit Breaker, Battery, Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or Installed Inside A 65 dBA At Seven (07) Metres Acoustic Sound Proofed Canopy as our Customer wishes.Visa Energy Mitsubishi Series Generating Set Technical Data (50Hz)
| Model | Frequency 50Hz | MITSUBISHI Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| G580MNE | 638/510 | 580/464 | S6R PTA | 3800×1450×2200 | 5700×1800×2600 |  |
| G675MNE | 743/594 | 675/540 | S6R2 PTA | 3800×1450×2200 | 5700×1800×2600 | |
| G770MNE | 847/678 | 770/616 | S12A2 PTA | 4000×1650×2200 | 5700×1800×2600 | |
| G1030MNE | 1133/906 | 1030/824 | S12H PTA | 4300×2000×2400 | 6750×2200×2750 | |
| G1260MNE | 1386/1109 | 1260/1008 | S12R PTA | 4500×2000×2350 | Container 25` | |
| G1400MNE | 1540/1232 | 1400/1120 | S12R PTA2 | 4500×2000×2350 | Container 30` | |
| G1500MNE | 1694/1355 | 1540/1232 | S12RY2 PTAW | 5300×2000×2600 | Container 30` | |
| G1730MNE | 1903/1522 | 1730/1384 | S16R PTA | 5300×2000×2600 | Container`40 | |
| G1900MNE | 2090/1672 | 1900/1520 | S16R PTA2 | 5500×2000×2600 | Container`40 | |
| G2000MNES* | 2200/1760 | 2000/1600 | S16R PTA2S | 5500×2000×2600 | Container 40` | |
| G2000MNE | 2200/1760 | 2000/1600 | S16R PTAA2 | 6000×2150×2800 | Container`40 | |
| 1000 RPM | ||||||
| G1440MNU | 1584/1267 | 1440/1152 | S6U-PTA | 5300×1860×2700 | Refer To Factory | |
| G1550MNU | 1705/1364 | 1550/1240 | S6U2-PTA | 5600×1860×2800 | Refer To Factory | |
| G1900MNU | 2090/1672 | 1900/1520 | S8U-PTA | 6510×1860×2730 | Refer To Factory | |
| G2885MNU | 3174/2539 | 2885/2308 | S12U-PTA | 7520×2300×3110 | Refer To Factory | |
| G3850MNU | 4235/3388 | 3850/3080 | S16U-PTA | 9350×2300×3055 | Refer To Factory | |
| *Special cooling systemM | ||||||
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY MITSUBISHI DIESEL ENGINES
Visa Energy Model G—MNE and G—MNS – complete Mitsubishi Diesel Generating Set, 600kVA to 4000kVA Prime Power Rated, @ 125°C/45°C, Water Cooled Diesel Generating Set with Engine Mounted Radiator, 380/400 volts, 50 Hz, 1500 Rpm with coupled with either Stamford or Leroy Somer or Marathon Alternator, Insulation Class H, Skid Mounted on a Steel Base Frame with operation Diesel Base Tank Supplied With Generator Mounted Deep Sea 7320 AMF Start/Stop Electrical Control Panel with Three (03) or Four (04) Pole Circuit Breaker, Battery, Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or Installed Inside A 65 dBA At Seven (07) Metres Acoustic Sound Proofed Canopy as our Customer wishes.
Visa Energy Mitsubishi Series Generating Set Technical Data (60Hz)
| Model | Frequency 60Hz | MITSUBISHI Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| G580MNY | 638/510 | 580/464 | S6R PTA | 3800×1450×2200 | 5700×1800×2600 | |
| G675MNY | 743/594 | 675/540 | S6R2 PTA | 3800×1450×2200 | 5700×1800×2600 | |
| G770MNY | 847/678 | 770/616 | S12A2 PTA | 4000×1650×2200 | 5700×1800×2600 | |
| G1030MNY | 1133/906 | 1030/824 | S12H PTA | 4300×2000×2400 | 6750×2200×2750 | |
| G1260MNY | 1386/1109 | 1260/1008 | S12R PTA | 4500×2000×2350 | Container 25` | |
| G1400MNY | 1540/1232 | 1400/1120 | S12R PTA2 | 4500×2000×2350 | Container 30` | |
| G1500MNY | 1694/1355 | 1540/1232 | S12RY2 PTAW | 5300×2000×2600 | Container 30` | |
| G1730MNY | 1903/1522 | 1730/1384 | S16R PTA | 5300×2000×2600 | Container`40 | |
| G1900MNY | 2090/1672 | 1900/1520 | S16R PTA2 | 5500×2000×2600 | Container`40 | |
| G2000MNYS* | 2200/1760 | 2000/1600 | S16R PTA2S | 5500×2000×2600 | Container 40` | |
| G2000MNY | 2200/1760 | 2000/1600 | S16R PTAA2 | 6000×2150×2800 | Container`40 | |
| G2500MNY | 2500/2000 | 2250/1800 | S16R PTAA2 | 6000×2150×2800 | Container`40 | |
| 1000 RPM | ||||||
| G1440MNU | 1584/1267 | 1440/1152 | S6U-PTA | 5300×1860×2700 | Refer To Factory | |
| G1550MNU | 1705/1364 | 1550/1240 | S6U2-PTA | 5600×1860×2800 | Refer To Factory | |
| G1900MNU | 2090/1672 | 1900/1520 | S8U-PTA | 6510×1860×2730 | Refer To Factory | |
| G2885MNU | 3174/2539 | 2885/2308 | S12U-PTA | 7520×2300×3110 | Refer To Factory | |
| G3850MNU | 4235/3388 | 3850/3080 | S16U-PTA | 9350×2300×3055 | Refer To Factory | |
| *Special cooling system | ||||||
