Cummins Diesel Generator
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY CUMMINS DIESEL ENGINES

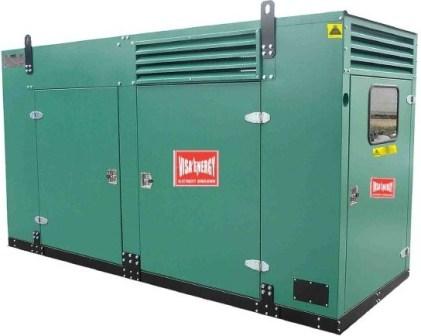

Visa Energy Model G—CNE and G—CNS & Cummins Model C—D5/D5S and C—D5e /D5eS- complete Cummins Diesel Generating Set, 10.0kVA – 3000.0kVA prime power rated, @ 125°c/45°c, water cooled Diesel Generating Set with engine mounted radiator, 380/400 Volts, 50 Hz, 1500 Rpm with coupled with either Stamford or Leroy Somer or Marathon alternator, insulation class h, skid mounted on a steel base frame with operation diesel base tank supplied with generator mounted Deep Sea 7320 or Cummins Power Command PS0550/PCC1.2/PCC1302/PCC2100/PCC2.2/PCC3.3 AMF Start/Stop Electrical Control Panel with three (03) or four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or installed inside a 65 dBA at seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.Visa Energy Cummins Series Generating Set Technical Data (50Hz)
| Model | Frequency 50Hz | CUMMINS Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| G44CNE/C44D5 | 44/35 | 40/32 | S3.8G4 | 1750×930×1250 | 3000×1100×1800 |  |
| G55CNE/C55D5 | 55/44 | 50/40 | S3.8G6 | 1750×930×1250 | 3000×1100×1800 | |
| G66CNE/C66D5 | 66/52 | 60/48 | S3.8G7 | 1950×1050×1250 | 3000×1100×1800 | |
| G90CNE/C90D5 | 90/72 | 82/65 | 6BTA5.9G5 | 1950×1050×1250 | 3000×1100×1800 | |
| G110CNE/C110D5 | 110/88 | 100/80 | 6BTA5.9G5 | 2400×1100×1500 | 3000×1100×1800 | |
| G150CNE/C150D5 | 150/120 | 136/109 | 6BTA5.9G5 | 2400×1100×1500 | 4100×1250×2100 | |
| G175CNE/C175D5 | 175/140 | 158/126 | QSB7G5 | 2700×1300×1600 | 4500×1500×2300 | |
| G200CNE/C200D5 | 200/160 | 182/146 | QSB7G5 | 2700×1300×1600 | 4500×1500×2300 | |
| G220CNE/C220D5 | 220/176 | 220/176 | QSB7G5 | 2700×1300×1600 | 4500×1500×2300 | |
| G250CNE/C250D5 | 250/200 | 227/182 | 6CTAA8.3G2 | 2700×1300×1600 | 4500×1500×2300 | |
| G271CN* | 275/220 | 250/200 | 6LTAA8.9G2 | 2700×1300×1600 | 4500×1500×2300 | |
| G275CNE/C275D5 | 275/220 | 250/200 | QSL9G5 | 2700×1300×1600 | 4500×1500×2650 | |
| G300CNE/C300D5 | 300/240 | 275/220 | QSL9G5 | 2700×1300×1600 | 4500×1500×2650 | |
| G330CNE/C330D5 | 330/264 | 300/240 | QSL9G5 | 3550×1100×2100 | 5200×1650×2300 | |
| G350CNE/C350D5 | 350/280 | 320/256 | NT855G6 | 3400×1500×2100 | 5200×1650×2300 | |
| G400CNE/C400D5 | 400/320 | 360/288 | NTA855G4 | 3400×1500×2100 | 5200×1650×2300 | |
| G440CNE/C440D5 | 440/352 | 400/320 | NTA855G7 | 3400×1500×2100 | 5200×1650×2300 | |
| G500CNE/C500D5e | 500/400 | 450/360 | QSX15G8 | 3400×1500×2100 | 5200×1650×2300 | |
| G550CNE/C550D5e | 550/440 | 500/4002 | QSX15G8 | 3400×1500×2100 | 5200×1650×2300 | |
| G700CNE/C700D5 | 706/565 | 640/512 | VTA28G5 | 3900×1350×2000 | 5700×1800×2650 | |
| G825CNEa/C825D5A | 825/660 | 750/600 | VTA28G6 | 4450×1450×2300 | 7000×2100×2700 | |
| G825CNE/C825D5 | 825/660 | 750/600 | QSK23G3 | 4450×1450×2300 | 7000×2100×2700 | |
| G850CNE | 850/680 | 800/640 | QST30G2 | 4450×1450×2300 | 7000×2100×2700 | |
| G900CNE/C900D5 | 900/720 | 820/656 | QSK23G3 | 4400×1750×2200 | 7000×2100×2700 | |
| G1000CNE/C1000D5 | 1041/833 | 939/751 | QST30G3 | 4450×1450×2300 | 7000×2100×2700 | |
| G1100CNE/C1100D5 | 1110/888 | 1000/800 | QST30G4 | 4450×1450×2300 | 7000×2100×2700 | |
| G1400CNE/C1400D5 | 1400/1120 | 1250/1000 | KTA50G3 | 5150×1650×2300 | Container`30 | |
| G1675CNE/C1675D5 | 1675/1340 | 1400/1120 | KTA50G8 | 5700×1650×2300 | Container`30 | |
| G1675CNEa/C1675D5A | 1675/1340 | 1500/1200 | KTA50GS8 | 6200×2300×2550 | Container`40 | |
| G1760CNE/C1760D5e | 1760/1408 | 1600/1280 | QSK60GS3 | 6200×2300×2550 | Container`40 | |
| G2000CNE/C2000D5 | 2063/1650 | 2063/1650 | QSK60G3 | 6200×2300×2550 | Container`40 | |
| G2250CNE/C2250D5 | 2250/1800 | 2000/1600 | QSK60G4 | 6200×2300×2550 | Container`40 | |
VISA ENERGY ELECTRICITY GENERATING SETS SERIES POWERED BY CUMMINS DIESEL ENGINES
Visa Energy Model G—CNE and G—CNS & Cummins Model C—D5/D5S and C—D5e /D5eS– complete Cummins Diesel Generating Set, 10.0kVA – 3000.0kVA prime power rated, @ 125°c/45°c, water cooled Diesel Generating Set with engine mounted radiator, 380/400 Volts, 50 Hz, 1500 Rpm with coupled with either Stamford or Leroy Somer or Marathon alternator, insulation class h, skid mounted on a steel base frame with operation diesel base tank supplied with generator mounted Deep Sea 7320 or Cummins Power Command PS0550/PCC1.2/PCC1302/PCC2100/PCC2.2/PCC3.3 AMF Start/Stop Electrical Control Panel with three (03) or four (04) Pole Circuit Breaker, Battery , Battery Lead, Anti-Vibration Mounting, Exhaust Pipe and Silencer (Skid Mounted – Open Frame Type) or installed inside a 65 dBA at seven (07) Metres Acoustic Sound Proofed Canopy as our customer wishes.
Visa Energy Cummins Series Generating Set Technical Data (60Hz)
| Model | Frequency 60Hz | CUMMINS Diesel Engine | Dimension (L*W*H)(mm*mm*mm) | Detail Data | ||
|---|---|---|---|---|---|---|
| Standby(KVA/KW) | Prime(KVA/KW) | Open Type | Soundproof | |||
| G30CNY | 38/30 | 34/27 | 4BTA3.9G2 | 1750×930×1250 | 3000×1100×1800 | |
| G40CNY | 50/40 | 45/36 | 4BTA3.9G2 | 1750×930×1250 | 3000×1100×1800 | |
| G50CNY | 63/50 | 57/45 | 4BTA3.9G2 | 1950×1050×1250 | 3500×1100×1800 | |
| G60CNY | 75/60 | 68/55 | 4BTA3.9G2 | 1950×1050×1250 | 3500×1100×1800 | |
| G80CNY | 100/80 | 91/73 | 6BT5.9G1 | 1950×1050×1250 | 3500×1100×1800 | |
| G100CNY | 125/100 | 114/91 | 6BT5.9G2 | 2400×1100×1500 | 4100×1250×2100 | |
| G125CNY | 156/125 | 142/114 | 6BTAA5.9G2 | 2400×1300×1600 | 4500×1500×2300 | |
| G150CNY | 188/150 | 170/136 | 6CTA8.3G2 | 2700×1300×1600 | 4500×1500×2300 | |
| G175CNY | 219/175 | 199/159 | 6CTA8.3G2 | 2700×1300×1600 | 4500×1500×2300 | |
| G200CNY | 250/200 | 227/182 | 6CTAA8.3G3 | 2700×1300×1600 | 4500×1500×2650 | |
| G220CNY | 275/220 | 250/200 | QSL9G2 | 2700×1300×1600 | 4500×1500×2300 | |
| G250CNY | 313/250 | 281/225 | QSL9G3 | 2700×1300×1600 | 4500×1500×2300 | |
| G300CNY | 375/300 | 326/261 | QSL9G5 | 2700×1300×1600 | 4500×1500×2650 | |
| G350CNY | 438/350 | 398/318 | NTA855G3 | 3550×1100×2100 | 5200×1650×2300 | |
| G400CNY | 500/400 | 455/364 | NTA855G5 | 3550×1100×2100 | 5200×1650×2300 | |
| G450CNY | 563/450 | 511/409 | QSX15G7 | 3400×1500×2100 | 5200×1650×2300 | |
| G500CNY | 625/500 | 568/455 | QSX15G9 | 3400×1500×2100 | 5200×1650×2300 | |
| G600CNY | 750/600 | 682/545 | VTA28G5 | 3900×1350×2000 | 5700×1800×2650 | |
| G750CNY | 938/750 | 852/682 | QST30G1 | 4450×1450×2300 | 7000×2100×2700 | |
| G800CNY | 1000/800 | 909/727 | QST30G2 | 4450×1450×2300 | 7000×2100×2700 | |
| G801CNY | 1000/800 | 909/727 | QSK23G3 | 4450×1450×2300 | 7000×2100×2700 | |
| G900CNY | 1125/900 | 1023/818 | QST30G3 | 4400×1450×2300 | 7000×2100×2700 | |
| G1000CNY | 1250/1000 | 1136/909 | QST30G4 | 4450×1450×2300 | 7000×2100×2700 | |
| G1250CNY | 1563/1250 | 1420/1136 | KTA50G3 | 5700×1650×2300 | Container`30 | |
| G1450CNY | 1810/1448 | 1645/1316 | KTA50G9 | 5700×1650×2300 | Container`30 | |
| G1500CNY | 1875/1500 | 1705/1364 | KTA50G9 | 5700×1650×2300 | Container`30 | |
| G1728CNY | 2160/1782 | 1964/1571 | QSK60G5 | 6200×2300×2550 | Container`40 | |
| G1750CNY | 2188/1750 | 1989/1591 | QSK60G5 | 6200×2300×2550 | Container`40 | |
| G1972CNY | 2465/1972 | 2241/1793 | QSK60G6 | 6200×2300×2550 | Container`40 | |
| G2000CNY | 2500/2000 | 2273/1818 | QSK60G6 | 6200×2300×2550 | Container`40 | |
