Petrol Diesel Generators Sets From 5.0KVA to 14.0KVA

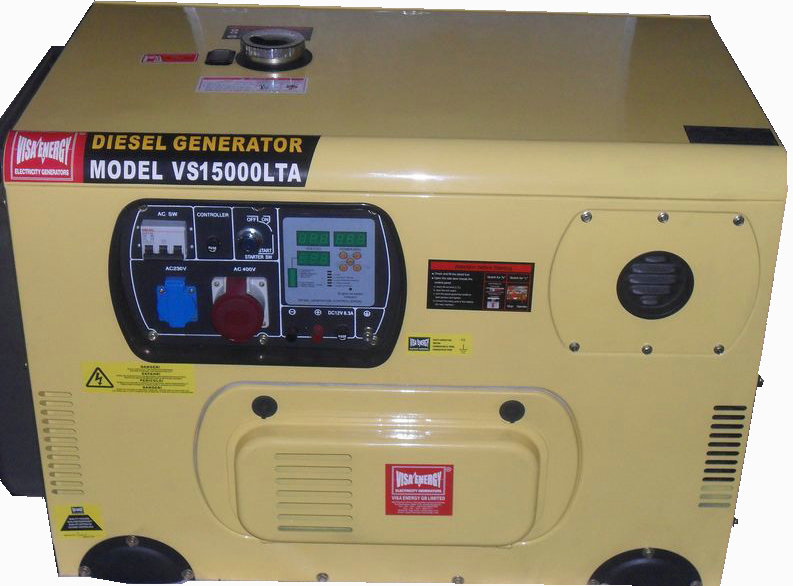

VISA ENERGY PORTABLE SILENT DIESEL GENERATORS
The Visa energy portable silent diesel generators dual voltage delivers clean power with extended run time, making it ideal for a wide range of demanding applications from home equipment backup to powering equipment out in the field. Smooth power is achieved with AVR technology maintaining a constant output voltage, compensating for fluctuations when the equipment starts up or the load changes. This helps provide a stable power source vital for running sensitive electronic devices safely. Multiple outlet sockets with switchable voltage allow you to run different appliances.
MAIN FEATURES:
- The Lightest And Smallest Among The Portable Diesel Generators With Same Output
- Full Automatic Generator Protection System
- Special Dual Protection System
- Unique Unloading System For Stopping The Generator
- Steady Frequency-Governing Ratio ≤ 3%, Complying With Military Standard
- Automatic Voltage Regulation For Maintaining Steady Voltage
- Automatic Transfer Switching, With Facilities For Remote Monitoring
- Low Noise, Only 70dBA @ 7 Metres
- New Patent Design, Low Inner Housing Temperature, Stable Output And Good Reliability
| MODEL | VS7000LT/LTA | VS7000LT3/LTA | VS8000LT/LTA | VS8000LT3/LTA3 | VS12000LTA | VS12000LTA3 | VS15000LTA | VS15000LTA3 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Frequency Hz | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | |||||
| Rated Output Power Kva | 5.0 5.8 | 6.3 7.2 | 5.5 6.3 | 7.0 8.0 | 10 11 | 11 12 | 12.5 13.5 | 13 14 | |||||
| Max. Power Kva | 5.5 6.0 | 6.8 7.5 | 6.0 6.5 | 8.0 8.5 | 11 12 | 12 13 | 14 15 | 15 15.5 | |||||
| Rated Voltage V | 230/115 240/120 | 400/230 416/240 | 230/115 240/120 | 400/230 416/240 | 230 240 | 400/230 416/240 | 230 240 | 400/230 416/240 | |||||
| Rated Current A | 21.7/43.5 24.1/48.3 | 9.0 10.0 | 23.9/47.8 26.3/52.5 | 10.1 11.1 | 43.5 45.9 | 15.9 16.7 | 54.4 56.3 | 18.8 19.5 | |||||
| Phase No. | Single | Three | Single | Three | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | |||||
| Power Factor | 1 | 0.8(lag） | 1 | 0.8(lag） | 1 | 0.8 | 1 | 0.8 | |||||
| Insulation | F | F | F | F | F | F | F | F | |||||
| Pole No. | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| Excitation Mode | Self-Excitation and Constant Voltage (with AVR） | ||||||||||||
| Panel Type | T: General Panel TA: Intelligent Panel | T: General Panel TA: Intelligent Panel | |||||||||||
| DC12V Output | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | |||||
| Dimensions:L×W×H Mm | 912×532×740 | 912×532×740 | 912×532×740 | 912×532×740 | 1040×660×740 | 1040×660×740 | 1040×660×740 | 1040×660×740 | |||||
| Net Weight Kg | 171 | 171 | 171 | 171 | 245 | 245 | 245 | 245 | |||||
| Noise(7m)Db(A) | 72 | 72 | 72 | 72 | 70 | 70 | 70 | 70 | |||||
| Structure Type | Silent | Silent | Silent | Silent | Silent | Silent | Silent | Silent | |||||
| Engine Model | WS188FA | WS188FA | WS188FB | WS188FB | R2V840 | R2V840 | R2V870 | R2V870 | |||||
| Type | Single,air-cooled,4-stroke, DI | V-twin, double-cylinder, air-cooled | V-twin, double-cylinder, air-cooled | ||||||||||
| Total Displacement Ml | 438 | 438 | 456 | 456 | 836 | 836 | 870 | 870 | |||||
| Rated Power Kw/Rated Speed R/Min | 6.5/3000 7.3/3600 | 6.5/3000 7.3/3600 | 7.5/3000 8.3/3600 | 7.5/3000 8.3/3600 | 11.0/3000 12.0/3600 | 11.0/3000 12.0/3600 | 13.0/3000 14.0/3600 | 13.0/3000 14.0/3600 | |||||
| Cooling Way | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | |||||
| Lubricating Way | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | |||||
| Starting Way | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | |||||
| Lubricating Oil Capacity L | 1.65 | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 | 1.7 | 1.7 | |||||
| Starting Motor Capacity V-Kw | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 1.4KW | 12V 1.4KW | 12V 1.4KW | 12V 1.4KW | |||||
| Dynamo Capacity V-A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | |||||
| Battery Capacity V-Ah | 12V 36AH | 12V 36AH | 12V 36AH | 12V 36AH | 12V 45AH | 12V 45AH | 12V 45AH | 12V 45AH | |||||
| Fuel Consumption G/Kw.H | 275 290 | 275 290 | 280 295 | 280 295 | 3.5 4.0 L/H | 3.5 4.0 L/H | 4.8/5.2 L/H | 4.8/5.2 L/H | |||||
| Fuel Tank Capacity L | 16 | 16 | 16 | 16 | 21 | 21 | 21 | 21 | |||||
| Continuous Running Time / HR | 9 8 | 9 8 | 7.8 7 | 7.8 7 | 7 | 7 | 6.5 | 6.5 | |||||

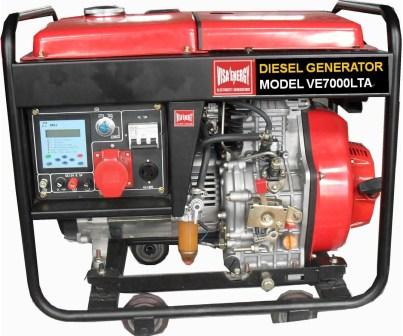

VISA ENERGY PORTABLE (GUARD FRAME – OPEN TYPE) DIESEL GENERATORS
The visa energy portable (guard frame – open type) diesel generators dual voltage delivers clean power with extended run time, making it ideal for a wide range of demanding applications from home equipment backup to powering equipment out in the field. Smooth power is achieved with AVR technology maintaining a constant output voltage, compensating for fluctuations when the equipment starts up or the load changes. This helps provide a stable power source vital for running sensitive electronic devices safely. Multiple outlet sockets with switchable voltage allow you to run different appliances.
| MODEL | VS7000LT/LTA | VS7000LT3/LTA | VS8000LT/LTA | VS8000LT3/LTA3 | VS12000LTA | VS12000LTA3 | VS15000LTA | VS15000LTA3 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Frequency Hz | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | ||||
| Rated Output Power Kva | 5.0 5.8 | 6.3 7.2 | 5.5 6.3 | 7.0 8.0 | 10 11 | 11 12 | 12.5 13.5 | 13 14 | ||||
| Max. Power Kva | 5.5 6.0 | 6.8 7.5 | 6.0 6.5 | 8.0 8.5 | 11 12 | 12 13 | 14 15 | 15 15.5 | ||||
| Rated Voltage V | 230/115 240/120 | 400/230 416/240 | 230/115 240/120 | 400/230 416/240 | 230 240 | 400/230 416/240 | 230 240 | 400/230 416/240 | ||||
| Rated Current A | 21.7/43.5 24.1/48.3 | 9.0 10.0 | 23.9/47.8 26.3/52.5 | 10.1 11.1 | 43.5 45.9 | 15.9 16.7 | 54.4 56.3 | 18.8 19.5 | ||||
| Phase No. | Single | Three | Single | Three | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | ||||
| Power Factor | 1 | 0.8(lag） | 1 | 0.8(lag） | 1 | 0.8(lag） | 1 | 0.8(lag） | ||||
| Insulation | F | F | F | F | F | F | F | F | ||||
| Pole No. | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||
| Excitation Mode | Self-Excitation and Constant Voltage(with AVR） | |||||||||||
| Panel Type | T: General Panel TA: Intelligent Panel | T: General Panel TA: Intelligent Panel | ||||||||||
| DC12V Output | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | 12V, 8.3A | ||||
| Dimensions : L×W×H Mm | 720×492×650 | 720×492×650 | 720×492×650 | 720×492×650 | 870×630×700 | 870×630×700 | 870×630×700 | 870×630×700 | ||||
| Net Weight Kg | 110 | 110 | 110 | 110 | 195 | 195 | 195 | 195 | ||||
| Noise(7m） Db(A) | 79 | 79 | 79 | 79 | 82 | 82 | 82 | 82 | ||||
| Structure Type | Guard Frame | Guard Frame | Guard Frame | Guard Frame | Guard Frame | Guard Frame | Guard Frame | |||||
| Engine Model | WS188FA | WS188FA | WS188FB | WS188FB | R2V840 | R2V840 | R2V870 | R2V870 | ||||
| Type | Single,air-cooled,4-stroke, DI | V-twin, double-cylinder, air-cooled | V-twin, double-cylinder, air-cooled | |||||||||
| Total Displacement Ml | 438 | 438 | 456 | 456 | 836 | 836 | 870 | 870 | ||||
| Rated Power Kw/Rated Speed R/Min | 6.5/3000 7.3/3600 | 6.5/3000 7.3/3600 | 7.5/3000 8.3/3600 | 7.5/3000 8.3/3600 | 11.0/3000 12.0/3600 | 11.0/3000 12.0/3600 | 13.0/3000 14.0/3600 | 13.0/3000 14.0/3600 | ||||
| Cooling Way | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | ||||
| Lubricating Way | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | Pressure & Splashing | ||||
| Starting Way | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | ||||
| Lubricating Oil Capacity L | 1.65 | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 | 1.7 | 1.7 | ||||
| Starting Motor Capacity V-Kw | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 1.4KW | 12V 1.4KW | 12V 1.4KW | 12V 1.4KW | ||||
| Dynamo Capacity V-A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | ||||
| Battery Capacity V-Ah | 12V 36AH | 12V 36AH | 12V 36AH | 12V 36AH | 12V 45AH | 12V 45AH | 12V 45AH | 12V 45AH | ||||
| Fuel Consumption G/Kw.H | 275 290 | 275 290 | 280 295 | 280 295 | 3.5 4.0 L/H | 3.5 4.0 L/H | 4.2 4.8 L/H | 4.2 4.8 L/H | ||||
| Fuel Tank Capacity L | 16 | 16 | 16 | 16 | 25 | 25 | 25 | 25 | ||||
| Continuous Running Time / HR | 9 8 | 9 8 | 7.8 7 | 7.8 7 | 7 | 7 | 6.5 | 6.5 | ||||
